Multi Purpose Core drill bits


Core drill bit MVC

Core drill bit  Blade MVC

Rotation Percussion T10mm T13mm SDSplus ElectricDrill Percussion Drill Light hammer Drill carbide

Features

  • Newly developed multi-blade shape made possible drilling on a wide range of materials such as Siding, ALC and Thin steel plate, mortar and woods.
  • Easy to remove of cutting waste by patented wide tip structure.
  • Easy to remove core dusts by non-screw lock structure of center drill bits.
  • Easy to change blade body by newly developed Radial One Shank systems.
  • 30% Light weight by using aluminum dicasting plates on bottom reduce the work load.
  • Standard equipment of SDS-PLUS type spindol makes easy to change machines.

Radial-One Shank for Core Drill bits

Safety instruction for Core drill bits

Quick Lock center drill for Core Drill bits

Applications

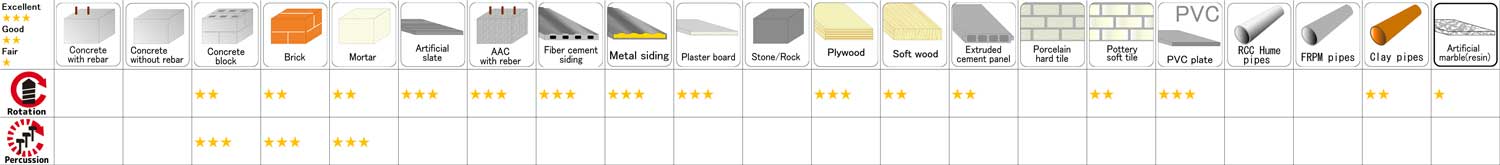

application of Core Drill bit MVC

Mortar, Concrete block, Alc, Brick, Plywood, 2 × 4 materials, Siding (Cement · Metal type), Slate, Plaster board, Tile, Thin steel plates, FRP, PVC, Mud wall, Bamboo, Japan Wall..etc.

Specifications

Size 29mm~220mm
Shank Size 29mm~80mm…10mm straight
85mm~220mm…13mm straight
Extra SDS-PLUS spindol included
